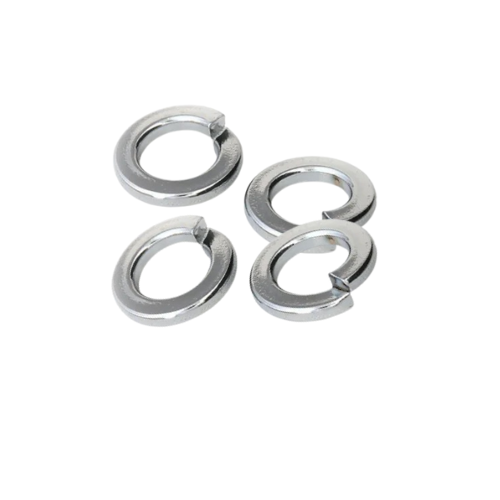

Stainless Bolt Industry's Quality SS 316 spring washers are made to provide outstanding locking efficiency as well as reliability in challenging environments.These spring washers are designed to maintain an assembly firmly connected while avoiding loosening due to vibrations or dynamic loads. They are produced from high-quality AISI 316 stainless steel. Because of its excellent resistance to corrosion, SS 316 spring washers are ideal for use in harsh and corrosive environments, especially in outdoor, chemical, and marine applications. Their helical design, which provides the best spring tension, makes them suitable for a range of mechanical, structural, and industrial applications.Our spring washers come in a number of sizes and finishes to meet a range of project demands, and they are dependable for their accuracy and lifetime.
Choosing Stainless Bolt Industry's SS 316 Spring Washers ensures unparalleled performance, quality, and durability in demanding situations. Our premium-grade AISI 316 stainless steel is known for its excellent resistance to corrosion, particularly in chemical and marine conditions.Our washers provide outstanding tension retention, resistance to loosening under vibration, and long-term dependability since they are expertly made to satisfy international standards. Our SS 316 spring washers are the go-to option for professionals in a variety of industries because they consistently perform well under the most trying circumstances, whether they are used for structural, mechanical, or industrial purposes.
We offer an extensive selection of SS 316 Spring Washer , designed to meet the diverse fastening needs of various industries. Here's why our SS 316 Spring Washer stand out :
| Element | Content (%) |
|---|---|
| Carbon (C) | ≤ 0.08 |
| Manganese (Mn) | ≤ 2.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Silicon (Si) | ≤ 1.00 |
| Element | Content (%) |
|---|---|
| Chromium (Cr) | 16.0 – 18.0 |
| Nickel (Ni) | 10.0 – 14.0 |
| Molybdenum (Mo) | 2.0 – 3.0 |
| Iron (Fe) | Balance |
| Specification | Details |
| Product Name | SS 316 Spring Washer |
| Material Grade | AISI 316 / ASTM A240 / DIN 1.4401 |
| Outer Diameter | As per DIN / ISO / IS standards |
| Inner Diameter | Standard metric and inch sizes |
| Thickness Range | 0.5 mm to 6 mm (custom thickness available) |
| Size Range | M3 to M64 (other sizes on request) |
| Finish | Natural / Passivated / Electro-polished |
| Tensile Strength | ≥ 515 MPa |
| Operating Temperature | -50°C to +870°C |
| Magnetic Property | Non-magnetic in annealed condition |
| Corrosion Resistance | Excellent – ideal for marine & chemical use |
