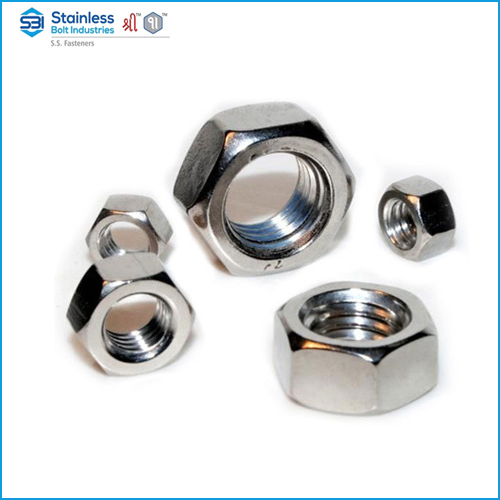

The SS 316 Hex Nut is an expensive six-sided fastener made by Stainless Bolt Industries from top-grade stainless steel (AISI 316). Because of its remarkable mechanical strength and corrosion resistance, this hex nut is widely used in industrial, chemical, and marine environments where it is frequently exposed to severe chemicals, moisture, and salt.Because of its higher molybdenum concentration, SS 316 has greater strength and resistance to erosion in crevices and pits than ordinary stainless grades. Long-lasting and expertly crafted, the Stainless Bolt Industries SS 316 Hex Nut offers dependable performance in even the most demanding applications.
Stainless Bolt Industries' SS 316 Hex Nuts are the best choice for performance and longevity in challenging conditions. These nuts are ideal for marine, coastal, and industrial applications since they are made of premium AISI 316 stainless steel, which has outstanding resistance to corrosion, pitting, and chemical assaults. They can withstand even the harshest conditions because to the inclusion of molybdenum, which increases their resistance to corrosion caused by chloride. In addition to their strong physical characteristics, these nuts are non-magnetic, which makes them a popular choice for sectors including electronics, medicines, and food processing. Stainless Bolt Industries guarantees that every nut is perfectly manufactured for accuracy and strength.
We offer an extensive selection of SS 316 Hex Nuts , designed to meet the diverse fastening needs of various industries. Here's why our SS 316 Hex Nuts stand out :
| Property | Value |
|---|---|
| Grade | SS 316 / AISI 316 |
| Standard Compliance | ASTM A194 Grade 8M / DIN 934 / ISO 4032 |
| Density | 7.98 g/cm³ |
| Melting Point | 1375 – 1400°C |
| Magnetic Properties | Non-magnetic in annealed condition |
| Property | Value |
|---|---|
| Tensile Strength | ≥ 515 MPa (min) |
| Yield Strength (0.2%) | ≥ 205 MPa (min) |
| Elongation (in 50 mm) | ≥ 30% |
| Hardness | ≤ 95 HRB |
| Working Temperature | Up to 870°C (intermittent) |
| Thread Size | Width Across Flats (mm) | Height (mm) |
|---|---|---|
| M6 | 10.0 | 5.0 |
| M8 | 13.0 | 6.5 |
| M10 | 17.0 | 8.0 |
| M12 | 19.0 | 10.0 |
| M16 | 24.0 | 13.0 |
| M20 | 30.0 | 16.0 |
| Others | As per DIN/ISO | Standardized |
| Property | Value |
|---|---|
| Thread Type | Metric (Coarse/Fine), UNC, UNF |
| Tolerance Class | 6H (Metric) / 2B (Inch) |
| Thread Direction | Right-hand (Standard); left-hand available on request |
| Property | Value |
|---|---|
| Finish | Natural (uncoated), Passivated (for enhanced corrosion resistance) |
