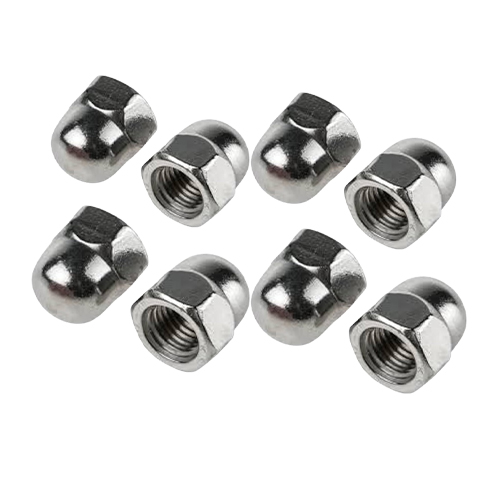

Stainless Steel 304 Dome Nut.

Stainless Steel 304 Dome Nut

Based on their amazing capacity for corrosion, Stainless Bolt Industries is a leading manufacturer and supplier of SS 304 Dome Nuts, These dome nuts' smooth, domed tops protect the threads of bolts or other fasteners underneath while also enhancing the aesthetics of your assemblies.Acorn nuts, sometimes referred to as SS 304 dome nuts. In addition to offering a snug fit, these nuts' smooth, dome-shaped top conceals and shields the exposed bolt threads in front of their hexagonal base. This design helps prevent thread corrosion, damage, and injuries, especially when using high-moisture or outdoor settings.Their sleek, polished finish provides assemblies a clean, professional look while requesting an added layer of safety and reliability.

Why Choose SS 304 Dome Nuts from Stainless Bolt Industries?

We manufacture SS 304 Dome Nuts to the highest industry standards, ensuring robust performance and long-lasting durability in challenging environments.
These dome nuts are designed not only for visual appeal but also to safeguard the threads of your bolts and screws from corrosion, dirt, and moisture
We offer SS 304 Dome Nuts in various sizes to meet your specific needs, whether for small projects or large-scale industrial applications.
Stainless Bolt Industries offers the flexibility to customize Dome Nuts according to your thread specifications, sizes, and finishes.

Dimension Standard of SS 304 Dome Nuts:

Thread Size (d)	Width Across Flats (s)	Height (h)	Dome Height (k)	Standard
M4	7 mm	5 mm	4 mm	DIN 1587
M5	8 mm	6 mm	5 mm	DIN 1587
M6	10 mm	8 mm	6 mm	DIN 1587
M8	13 mm	10 mm	8 mm	DIN 1587
M10	17 mm	12 mm	10 mm	DIN 1587
M12	19 mm	14 mm	12 mm	DIN 1587
M16	24 mm	18 mm	16 mm	DIN 1587

Advantages of Our SS 304 Dome Nuts

We offer an extensive selection of SS 304 Dome Nuts , designed to meet the diverse fastening needs of various industries. Here's why our SS 304 Dome Nuts stand out :

The dome shape serves both an aesthetic and functional purpose, providing a smooth finish while covering and protecting threaded fasteners.
Dome Nuts shield the threads from external damage, preventing wear, corrosion, and reducing the need for frequent replacements.
Their non-reactive properties make them ideal for use in environments sensitive to contaminants or corrosion, such as cleanrooms or food processing plants.
these dome nuts offer a longer lifespan, reducing maintenance and replacement costs over time.

Technical Specification of SS 304 Dome Nuts:

Specification	Details
Product Name	SS 304 Dome Nut
Material Grade	Stainless Steel AISI 304 (UNS S30400)
Thread Type	Metric (M), UNC (Unified National Coarse), UNF (Unified National Fine)
Size Range	M6 to M30 (custom sizes available upon request)
Dome Design	Fully encapsulated rounded top for thread protection and aesthetic appeal
Tensile Strength	≥ 500 MPa
Yield Strength	≥ 205 MPa
Hardness	≤ 95 HRB
Finish	Natural / Passivated / Polished
Operating Temperature	Up to 870°C (intermittent use)
Corrosion Resistance	Excellent resistance to corrosion, oxidation, and rust, ideal for harsh environments
Application	Marine, automotive, construction, HVAC, electrical enclosures, and more
Reusable	Yes (can be reused in non-corrosive environments)

SS 304 DOME NUT
