Whether used in furniture, HVAC systems, machinery covers, or light construction, SS 304 Wing Nuts offer a secure grip, user-friendly handling, and long-lasting performance even under tough conditions. Stainless Bolt Industries is happy to offer high-quality SS 304 Wing Nuts, specifically engineered for applications where quick, hand-tightened fastening is essential. Made from durable AISI 304 stainless steel, these wing nuts provide beneficial resistance to corrosion, rust, and general wear, making them ideal for use in outdoor, marine, and industrial environments. Their different wing-like projections make them easy to install and remove personally without the need for tools, making them ideal for assemblies that require frequent adjustment or disassembly.

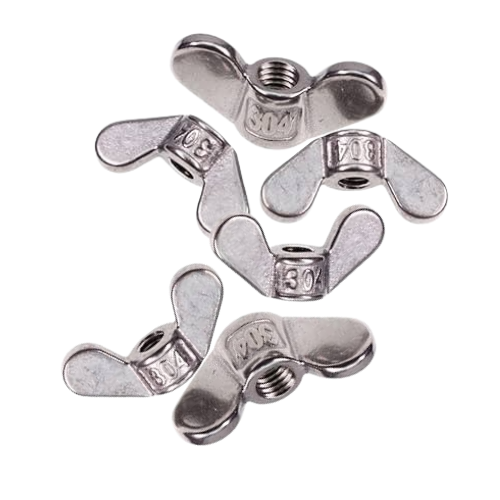

Because of its unique "winged" variants on either side, SS 304 Wing Nuts are specially made fastening parts that enable tool-free tightening and loosening by hand. These nuts, which are made of AISI 304 stainless steel, are perfect for both indoor and outdoor applications because of their exceptional resistance to rust, corrosion, and general wear. This is particularly relevant in situations that are chemical, food-grade, and maritime.A wing nut is visually distinguished by its central hex or threaded body, from which two flat tabs that resemble wings emerge on either side. These wings are ideal for applications that need regular adjustments or disassembly because they provide users with the leverage they need to install or remove the nut without the need for tools.
| Thread Size (d) | Height (h) | Width (w) | Wing Span (e) | Standard |
| M4 | 8 mm | 18 mm | 22 mm | DIN 315 |
| M5 | 9 mm | 22 mm | 26 mm | DIN 315 |
| M6 | 10 mm | 26 mm | 30 mm | DIN 315 |
| M8 | 12 mm | 32 mm | 36 mm | DIN 315 |
| M10 | 15 mm | 40 mm | 45 mm | DIN 315 |
| M12 | 18 mm | 48 mm | 54 mm | DIN 315 |
We offer an extensive selection of SS 304 Wing Nuts , designed to meet the diverse fastening needs of various industries. Here's why our SS 304 Wing Nuts stand out :
| Specification | Details |
| Product Name | SS 304 Wing Nut |
| Material Grade | Stainless Steel AISI 304 (UNS S30400) |
| Thread Type | Metric (M4 to M16), UNC, UNF (available on request) |
| Design | Hex base with two hand wings for tool-free tightening |
| Standard | DIN 315 |
| Tensile Strength | ≥ 500 MPa |
| Yield Strength | ≥ 215 MPa |
| Finish | Natural / Bright / Passivated |
| Corrosion Resistance | Excellent (suitable for marine and outdoor applications) |
| Operating Temperature | Up to 870°C (intermittent) |
| Reusable | Yes, for multiple assembly/disassembly cycles |
| Applications | Furniture, HVAC systems, light construction, machinery covers, and DIY fixtures |
