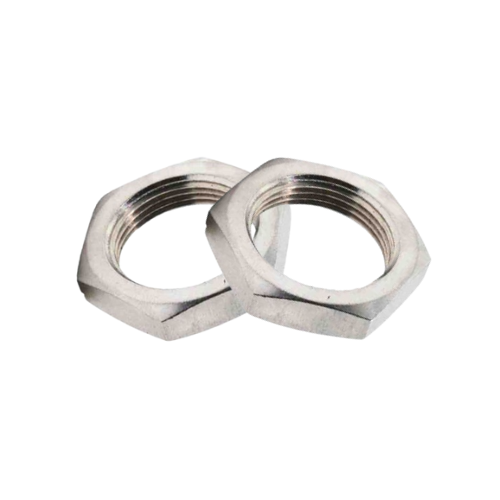

Stainless Steel 304 Thin Nut

High-quality SS 304 Thin Nuts from Stainless Bolt Industries are excellent for situations where space is at a premium and a conventional nut's length would be too large. These thin nuts, which have a slimmer profile for smaller installations, are made of AISI 304 stainless steel and offer the same remarkable strength and corrosion resistance that traditional nuts. When a safe, reliable fastening solution is needed but space is an issue, the SS 304 Thin Nuts are perfect for usage in sectors including electronics, construction, automotive, and industrial. Even in challenging conditions where they are subjected to moisture, chemicals, and high temperatures, the 304 stainless steel makes sure that these nuts will not rust, oxidize, or wear down.

Stainless Steel Nuts

Key Features Of SS 304 Thin Nut

Stainless Steel Nuts
  • these thin nuts offer superior protection against rust, oxidation, and corrosion, making them perfect for use in marine, chemical, or outdoor environments.
  • The thinner profile of these nuts makes them ideal for use in tight spaces or assemblies with limited clearance, where traditional nuts would be too large.
  • Despite their slim design, these nuts provide the same high tensile strength and durability as standard nuts, making them suitable for heavy-duty applications.
  • These thin nuts are compatible with UNC and UNF threaded bolts, providing flexibility in various industrial and commercial applications.

Technical Specification of SS 304 Thin Nut:

Specification Details
Product Name SS 304 Thin Nut
Material Grade Stainless Steel AISI 304 (UNS S30400)
Thread Type Metric / UNC / UNF / BSW
Type Hex Thin / Jam Nut (Low-profile)
Standard DIN 439, ISO 4035, ASME B18.2.2
Tensile Strength ≥ 515 MPa
Yield Strength ≥ 205 MPa
Hardness ≤ 95 HRB
Finish Natural / Bright / Passivated
Corrosion Resistance Excellent – suitable for general outdoor and mild chemical environments
Applications Locking nut in double-nut systems, low-clearance assemblies, vibration resistance

Applications of SS 304 Thin Nuts

We offer an extensive selection of SS 304 Thin Nuts , designed to meet the diverse fastening needs of various industries. Here's why our SS 304 Thin Nuts stand out :

  • Perfect for space-constrained uses such fastening parts to scaffolding, machines, or buildings.
  • used to secure parts in technology where efficient and compact designs require space-saving solutions.
  • Ideal for usage in maritime settings, such ships and boats, where resistance to rust and corrosion is essential.
  • Perfect for securing parts of air conditioning, heating, and ventilation systems that need small, tight connections.

Dimension Standard of SS 304 Thin Nut:

Nominal Size (M) Thread Pitch Width Across Flats (A/F) Nut Height (Thin Type) Standard
M6 1.0 mm 10 mm 3 mm DIN 439 / ISO 4035
M8 1.25 mm 13 mm 4 mm DIN 439 / ISO 4035
M10 1.5 mm 17 mm 5 mm DIN 439 / ISO 4035
M12 1.75 mm 19 mm 6 mm DIN 439 / ISO 4035
M16 2.0 mm 24 mm 8 mm DIN 439 / ISO 4035
M20 2.5 mm 30 mm 10 mm DIN 439 / ISO 4035
