Stainless Steel 304 NYLOCK Nut

SS 304 Nylock Nuts are a premium option for applications requiring safe, vibration-resistant fastening, and Stainless Bolt Industries is happy to provide them. These nuts are made of AISI 304 stainless steel, which offers remarkable resistance to corrosion, particularly in areas that are exposed to moisture and saltwater. The particular characteristic of NYLOCK Nuts is their nylon insert, which generates a powerful locking action that restricts the nut from loosening due to vibration or stress. This makes them particularly effective in industries where fasteners are subjected to continually movement or mechanical stress.

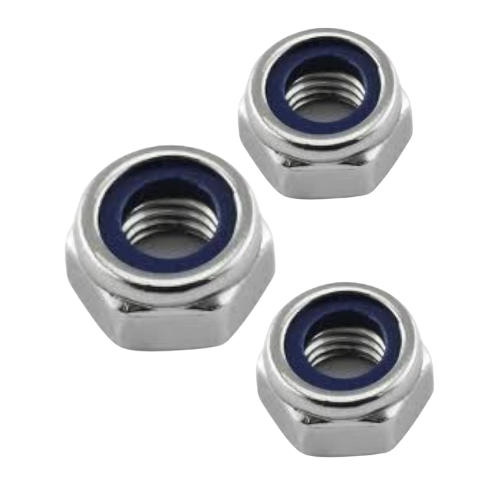

Stainless Steel nylock nut

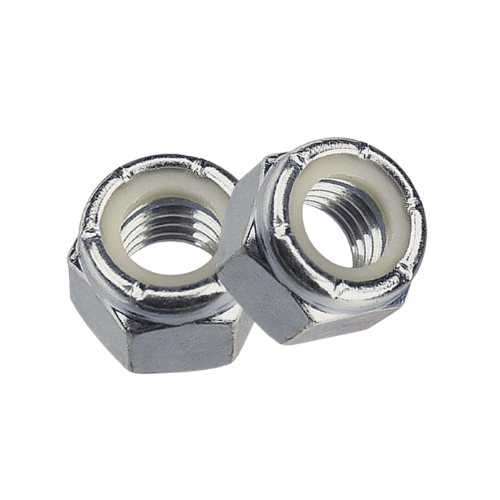

Stainless Steel Machine nylock nut

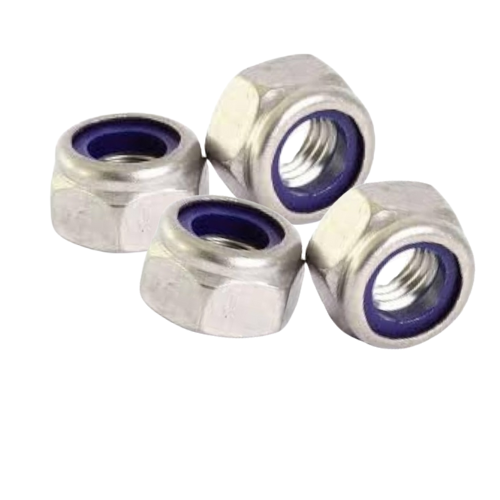

Stainless Steel nylock nut

Our SS 304 NYLOCK Nuts are compatible with a wide range of bolts and assemblies since they are available in a variety of sizes, thread types, and finishes.

Overview of the SS 304 NYLOCK Nut

Stainless Bolt Industries produces the SS 304 Nylock Nut, a very dependable self-locking nut with an incorporated nylon insert that is composed of AISI 304 stainless steel. This nut looks like a regular hex nut from the outside, but it has a unique nylon ring (usually white or blue) sitting in the upper part of the thread. The secret to its self-locking mechanism is the nylon ring, which raises resistance against the mating bolt thread and helps keep the nut from coming free from movement or vibration. Stainless steel is characterized by its smooth, metallic silver sheen and six-sided hexagonal body. When looking into the nut, it is easy to see that the nylon insert is located in the inside of the top area.

Key Feature of SS 304 NYLOCK Nut

  • The included nylon insert aids in preventing vibration-induced loosening.
  • NYLOCK nuts guarantee a safe, impenetrable connection because they are made to be used just once.
  • These nuts' structural integrity is ensured to be maintained even under duress thanks to their stainless steel construction.
  • Installation doesn't require any special tools; just use a socket and wrench to tighten.

Technical Specification of SS 304 Nylock Nuts:

Name Details
Product Name SS 304 Nylock Nut
Material Grade Stainless Steel AISI 304 (UNS S30400)
Thread Type Metric (M), UNC (Unified National Coarse), UNF (Unified National Fine)
Size Range M6 to M30 (custom sizes available upon request)
Nylock Insert High-quality nylon insert that prevents loosening due to vibration
Tensile Strength ≥ 500 MPa
Yield Strength ≥ 205 MPa
Hardness ≤ 95 HRB
Finish Natural / Passivated
Operating Temperature Up to 870°C (intermittent use)
Corrosion Resistance Excellent resistance to corrosion in marine, chemical, and outdoor environments
Application Marine, automotive, aerospace, heavy machinery, HVAC, electrical systems
Reusable No (single-use locking nut)
